ProView® plus Self Sealing Sterilization Pouch
Product Information

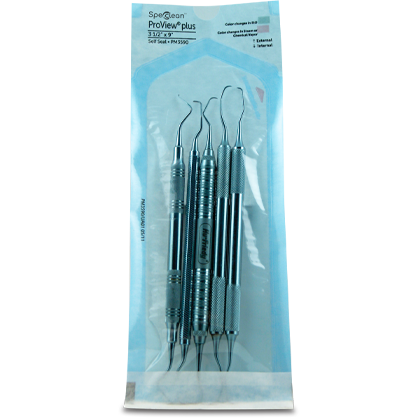

ProView plus is a paper and transparent poly plastic peel pouch to hold instruments and devices during sterilization and to maintain sterility in storage
Applications:
- Single use pouch to hold instruments, cassettes and small devices during sterilization process
- Maintain sterility of contents after sterilization in storage and transport
- Use in steam, chemical vapor and ethylene oxide gas (EtO) sterilization processes
- Reliable sterilization packaging when peel pouches are indicated
Features:
- Dependable medical grade construction with wide side seals, high wet strength medical grade paper and five-ply transparent blue poly film
- Triple Action Seal™ ensures consistent protection of contents with extra wide self-adhesive area: tape to paper, tape to film and tape to tape
- Built-in external and internal Type 4 chemical indicators with clear consistent color change in steam and EtO gas processes
- Environmentally responsible indicator inks are lab verified as non-hazardous waste
- Aseptic presentation with clean peel
- User friendly quick release tape and perforated edge at fold reduces time and effort during packaging
- Available in wide range of sizes for efficient loading

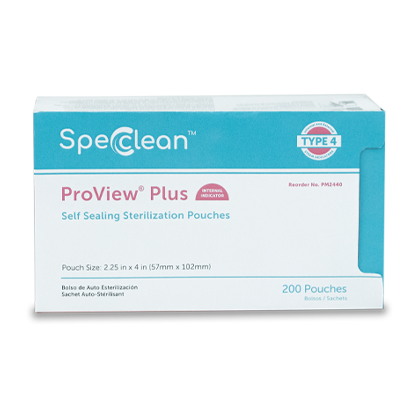

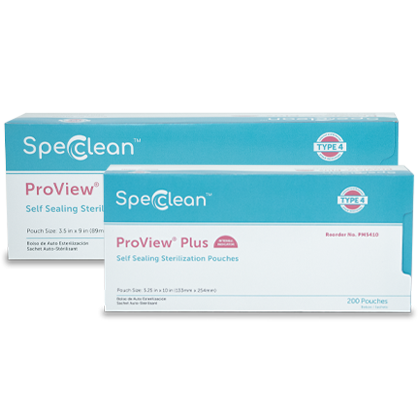

- Each box contains 200 pouches
- FAQ: Download
Product Details
Product Image |
Part Number | Package | Weight | Size | Technical Data Sheet | Safety Data Sheet |
|---|---|---|---|---|---|---|
|
1 PM2440-1 | Pouch for Burs/R.D. Clamps | 57 mm x 102 mm 2.25 in x 4 in | |||
|
1 PM2790-1 | Pouch for Instruments/Handpieces | 70 mm x 229 mm 2.75 in x 9 in | |||
|
1 PM3554-1 | Pouch for Small Items/Clamps | 89 mm x 133 mm 3.5 in x 5.25 in | |||
|
1 PM3590-1 | Pouch for Instrument Set-Up | 89 mm x 229 mm 3.5 in x 9 in | |||
|
1 PM5410-1 | Pouch for Small Cassette/Instruments | 133 mm x 254 mm 5.25 in x 10 in | |||
|
1 PM7513-1 | Pouch for Small Cassette | 191 mm x 343 mm 7.5 in x 13.5 in | |||
|
1 PM1016-1 | Pouch for Large Cassette | 254 mm x 406 mm 10 in x 16 in | |||
|
1 PM1318-1 | Pouch for Large Cassette | 330 mm x 457 mm 13 in x 18 in |
| Part Number | PM2440-1 | PM2790-1 | PM3554-1 | PM3590-1 | PM5410-1 | PM7513-1 | PM1016-1 | PM1318-1 |
|---|---|---|---|---|---|---|---|---|
| Package | Pouch for Burs/R.D. Clamps | Pouch for Instruments/Handpieces | Pouch for Small Items/Clamps | Pouch for Instrument Set-Up | Pouch for Small Cassette/Instruments | Pouch for Small Cassette | Pouch for Large Cassette | Pouch for Large Cassette |
| Weight | ||||||||
| Size | 57 mm x 102 mm 2.25 in x 4 in | 70 mm x 229 mm 2.75 in x 9 in | 89 mm x 133 mm 3.5 in x 5.25 in | 89 mm x 229 mm 3.5 in x 9 in | 133 mm x 254 mm 5.25 in x 10 in | 191 mm x 343 mm 7.5 in x 13.5 in | 254 mm x 406 mm 10 in x 16 in | 330 mm x 457 mm 13 in x 18 in |
| Technical Data Sheet |
Scroll
| Safety Rating | NA |
|---|
- Why are sterilization pouches used?
- How long does sterility last inside a sterilization pouches?
- What causes items to become unsterile?
- Is it appropriate to reuse self sealing paper/plastic pouches?
- My pouches are still hot and wet at the end of the steam sterilization process. Is it OK to take them out of the sterilizer and set them on a towel?
- What is the best way to maintain asepsis when opening pouches?
- What is the appropriate way to mark on my pouches the date and load number of sterilization?
- Are certain types of packaging required for different types of sterilization processes?
