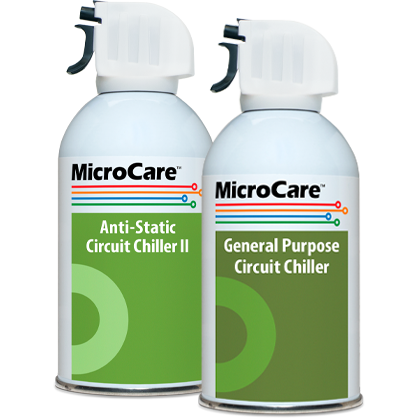

Low GWP General Purpose Circuit Chiller (Freeze Spray) - Europe

Product Information

This circuit chiller freeze spray quickly locates intermittent faults in circuit boards

Applications:

  • Use for circuit test and repair
  • Works on old and new equipment

Features:

  • Produced, labeled and packaged for compliance with all UK and EU safety rules
  • No residue / no rinsing
  • Leaves ice on the PCB momentarily
  • Dries instantly
  • Chills to lower than -45˚F/-43ºC in seconds; may go as low as -60˚F/-51˚C depending upon ambient conditions
  • Safe on plastics
  • Chemical Family: HFO blend
  • Nonflammable for better safety
  • RoHS/WEEE/REACH/F-GAS/EPA SNAP compliant

This ultra-pure circuit chiller freeze spray uses an HFO propellant. So, it will not generate the component-shattering thermal shock that can occur with old-style HCFC-based chillers. It is also ozone safe and has an ultra-low GWP (Global Warming Potential), making it environmentally responsible.

Product Details

Product Image
Part Number Package Weight Size Technical Data Sheet Safety Data Sheet
Product Image MCC-FRZ107 FRZ107 MCC-FRZ107 Aerosol 0.28 kg 0.61 lb. 300 mL 10 oz.
Part Number MCC-FRZ107
Package Aerosol
Weight 0.28 kg 0.61 lb.
Size 300 mL 10 oz.
Safety Data Sheet
SDS
Scroll

Technical Details

Appearance Clear, colorless gas
Odor None
PEL (ppm, 8-hr TWA) 1000
Boiling Point -19ºC / -2˚F
Chemical Family Tetrafluoropropene HFO
F-Gas Compliant
Evaporation Rate Instant
Cleaning Strength (Kb) Not applicable
Active Ingredients HFO Propellants
Flashpoint None
Global Warming Rating (100yr) <1
VOC Organic Content (g/L) Zero
Ozone Impact Zero
RoHS & WEEE Compliant
Safety Rating Non-flammable
Specific Gravity 1.29
Surface Tension Not available
Vapor Density 5.71
Viscosity Not available
Vapor Pressure @ 20ºC 498
